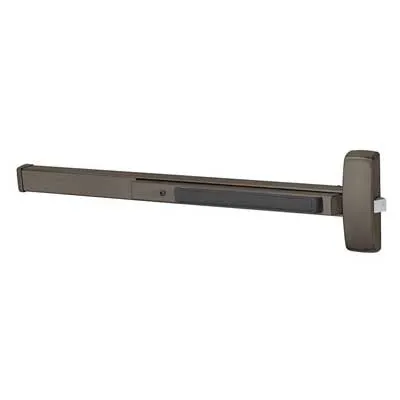

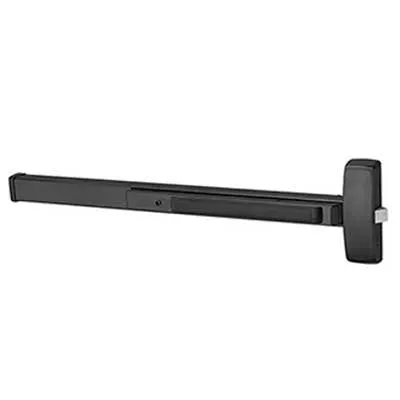

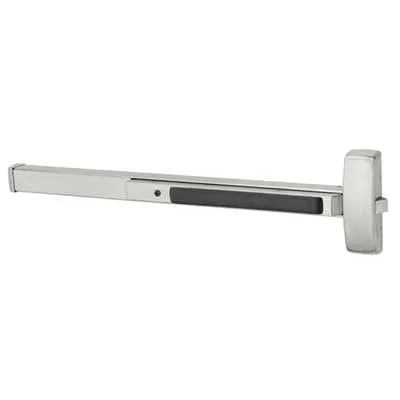

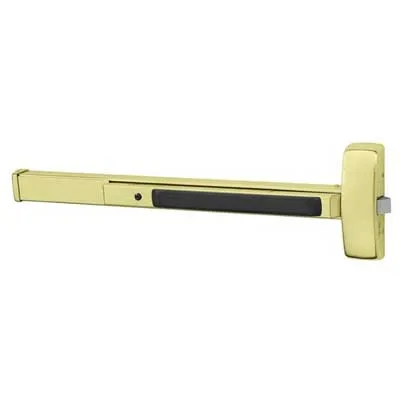

The Sargent 8888-J is a Rim Exit Device, with Multi-Function, has a Wide Style Push Pad, is Exit Only, 37"-42" Bar, Field Reversible, Grade 1, and is Non-Handed.
Multi-Function Device: Trims below decide the function of the device;
704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
Features: Sargent 8888 Rim Exit Device
- Non-handed
- Single and double door applications
- Device & trim sold separately; easy to mix and match
- 3 available trim designs; trim is field reversible
- Available in 32", 36", 42" and 48" widths (please specify)
- Available in US32D/630, US10B/613, & US3/605 Finishes
Compatible Panic Trims - Sold Separately
Product Specs
| Manufacturer | Sargent |
| SKU | 8888J |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 42" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
