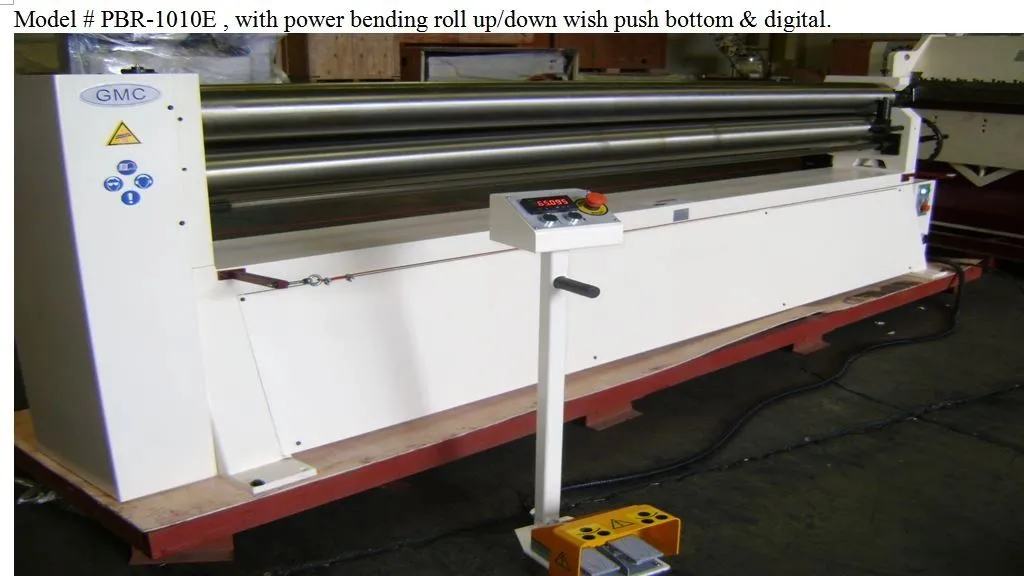

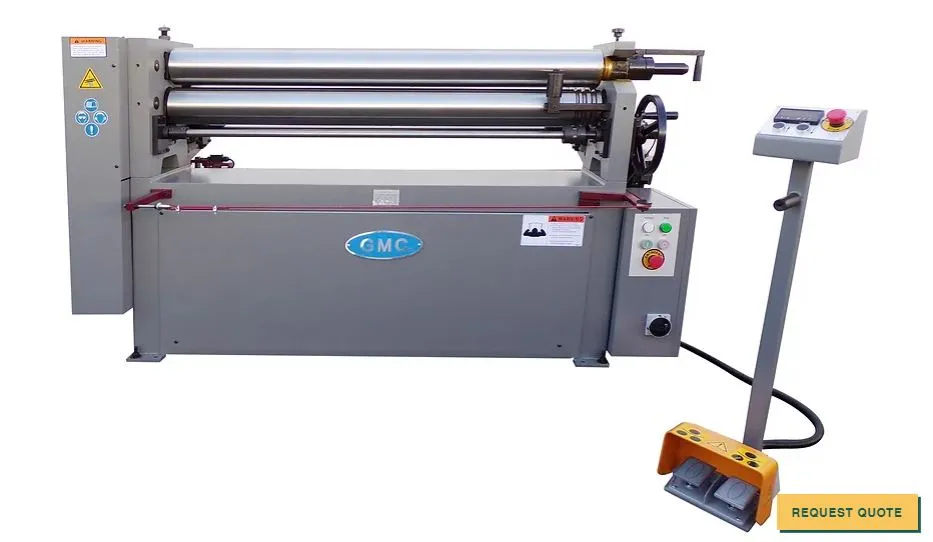

New GMC PBR-1010E, 10’x 10 Ga. powered bending roll
up/down w/ push button & display

Model PBR-1010E Factory: One Year Parts Warranty

This machine has a 7 1/2 HP Motor, rated at 220V three Phase. Power bending roll up/down with push button & display. 6.70" Rolls

STANDARD FEATURES

• SO 9001 certified
• Taiwan machines
• All (3) rolls are hardened rolls, up to 50-52 HRC
• 3-rollers are driven to perform high accuracy
• Adjustable cone attachment included
• 3/8”, ½” and 5/8” grooves on rollers
• One wheel one-side operated for bending roll
• One wheel one-site operated for pinch roll (E model is powered)
• Heavy duty casting frame
• Heavy duty all steel welded construction
• 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
• Quiet running operation
• Easy swing-out top roller
• Safety line all around the machine for emergency stop
• All rolls run forward and reverse
• Safety type forward/reverse foot pedal
• Power source 220V, (option: 440V, 3 phase)
• One year industrial warranty for parts

STANDARD INLUDED EQUIPMENT

• Adjustable cone attachment
• 3/8”, ½” and 5/8” grooves on rollers
• All (3) hardened rolls
• Removable safety foot pedal
• Operation & parts manual
• Orange color front cover is optional.

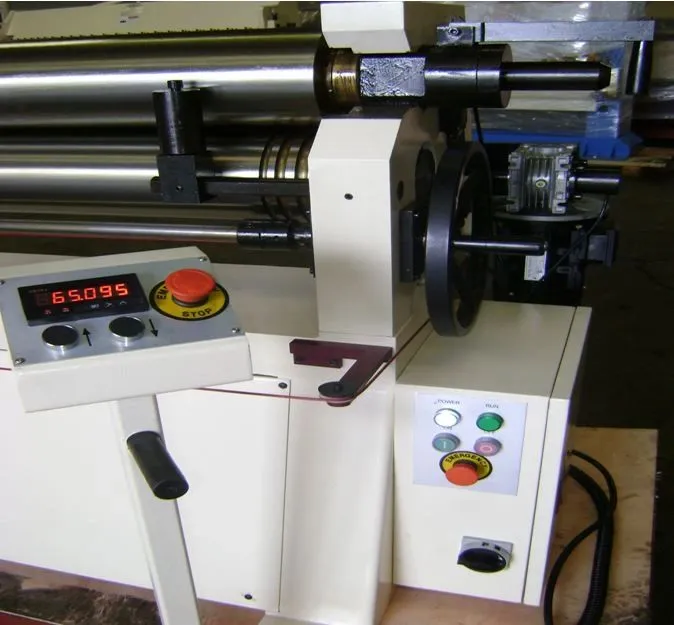

• E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs

OPTIONAL EQUIPMENT

Safety fence for enclosure of the back side of the machine - $1,150.00

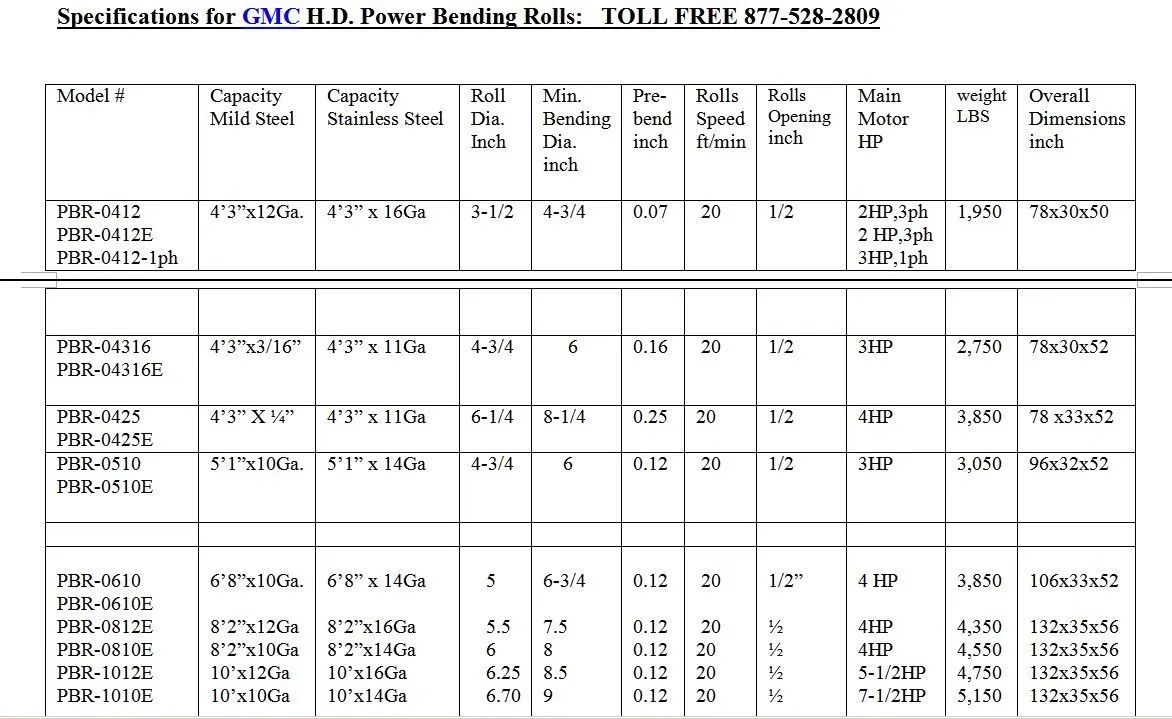

SPECIFICATIONS:
